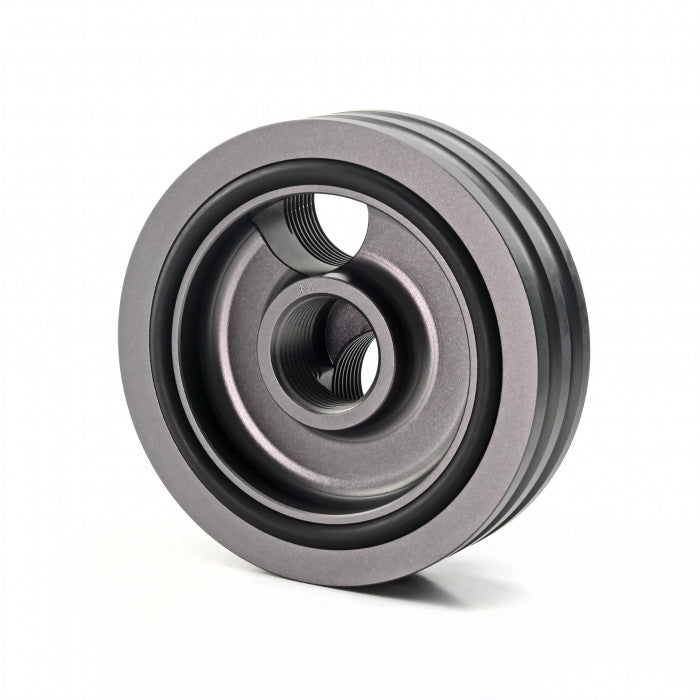

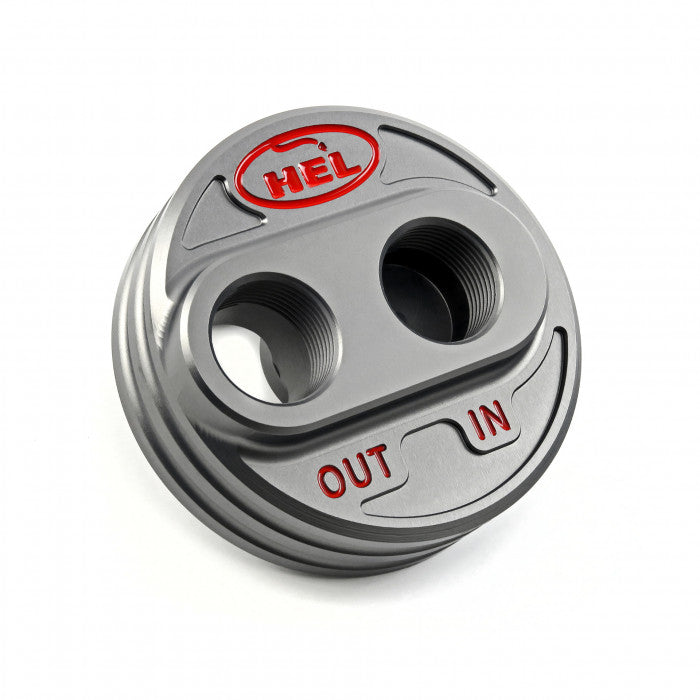

The HEL Performance oil take-off plate allows you to relocate the spin-on style oil filter from the original filter housing to a more convenient location. This take-off features M22 x 1.5 inlet and outlet ports, offering the use of various fittings and adapters when utilizing an in-line thermostat and an external oil cooler setup.
Machined from 6082-T6 Billet Aluminium in-house, at HEL's headquarters in the UK. All take-offs are assembled and inspected by hand and finished with a painted HEL logo.
Specification
Metric
Imperial & Other
Inlet Port
M22 x 1.5
Outlet Port
M22 x 1.5
Centre Bolt Thread Options
M20 x 1.5 or 3/4"-16 UNF
Finish
Anodized Grey
*Please make sure you select the correct center bolt thread option before ordering. The center bolt is not included.
Kit Contents:
Quantity
Description
1x
Solid Billet Oil Filter Relocation Take Off
1x
O-Ring

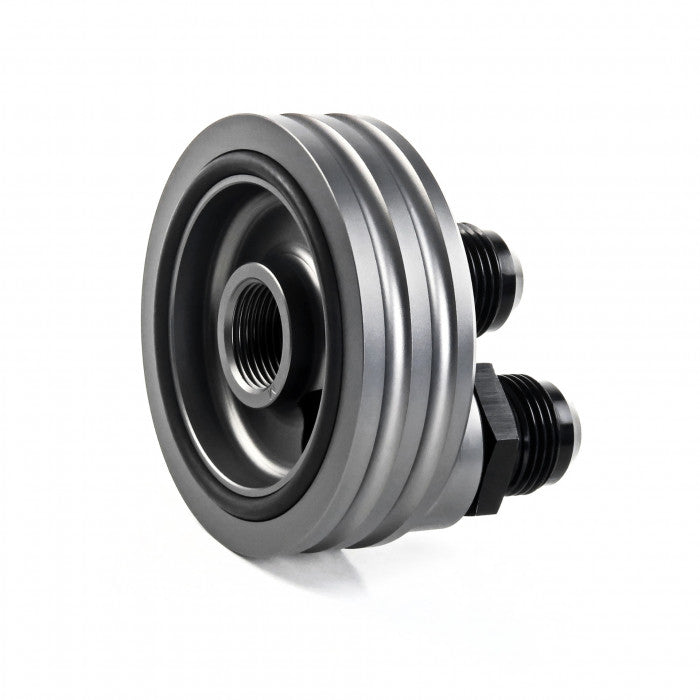

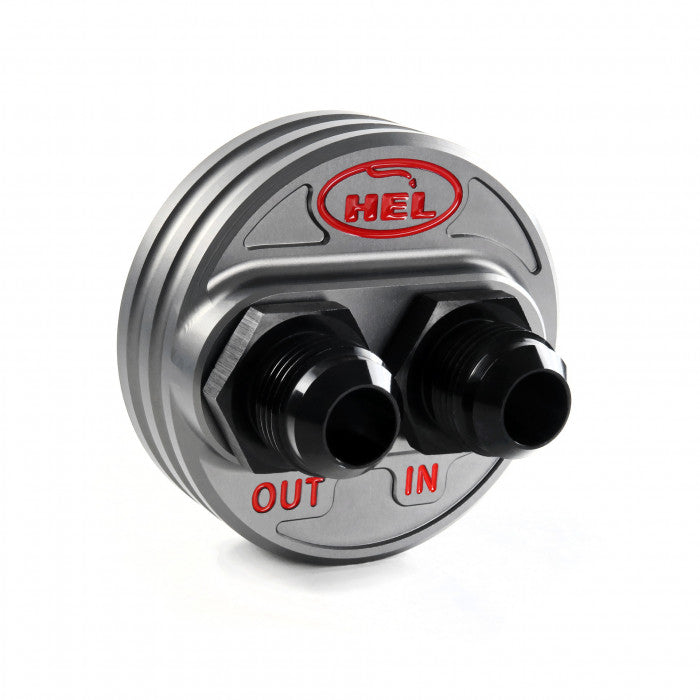

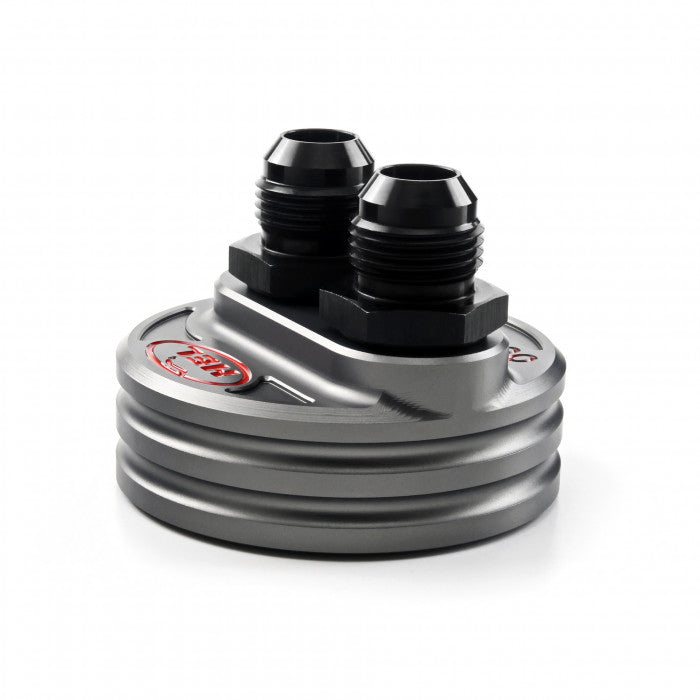

*Please note, the M22 - AN adapters (shown in pictures) are not supplied with this product. They are available to purchase separately.
